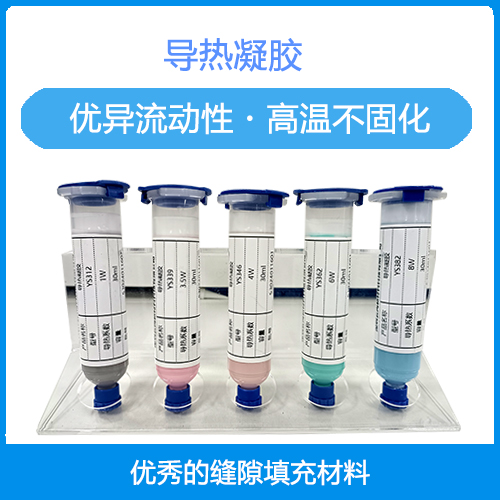

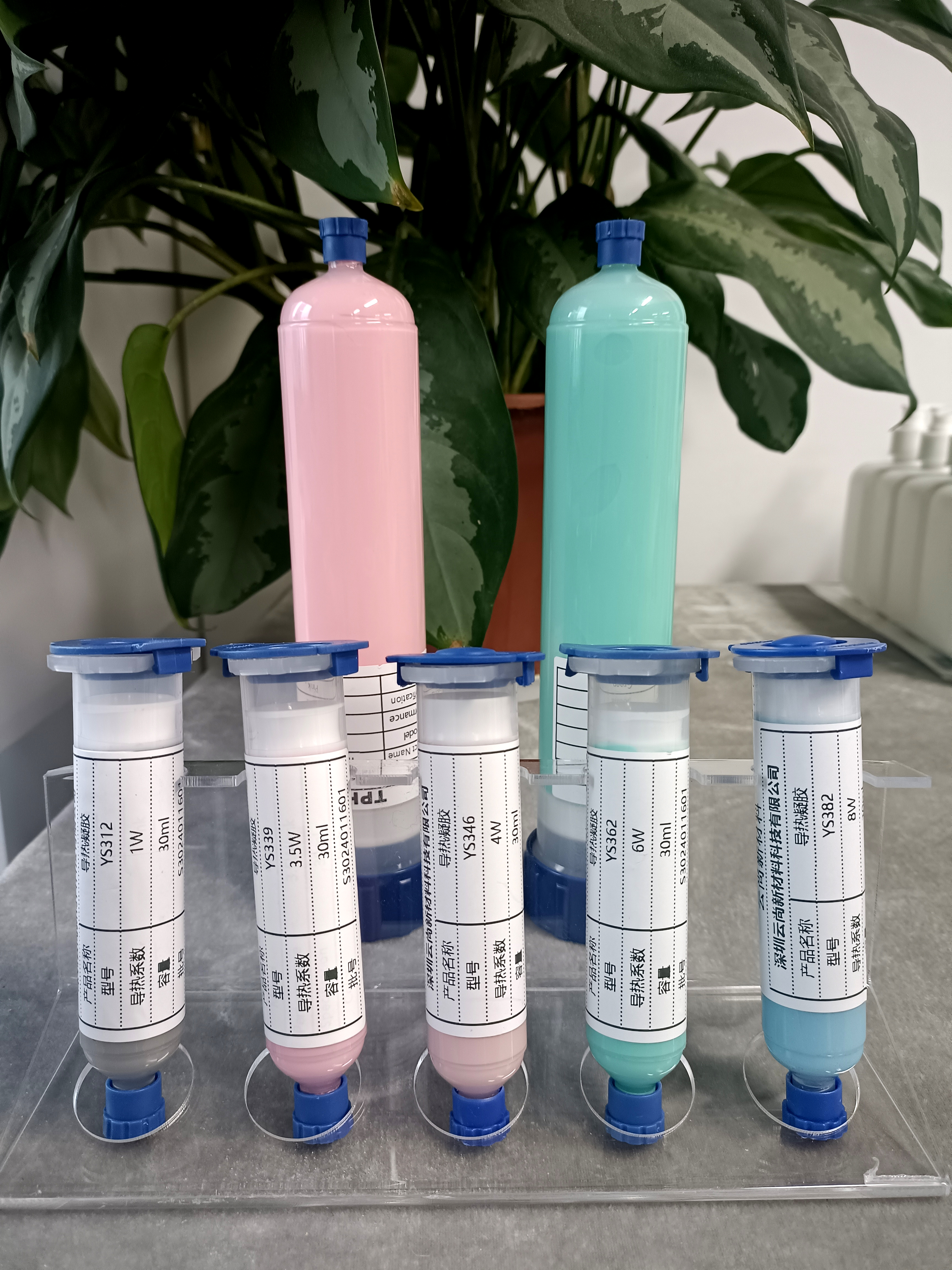

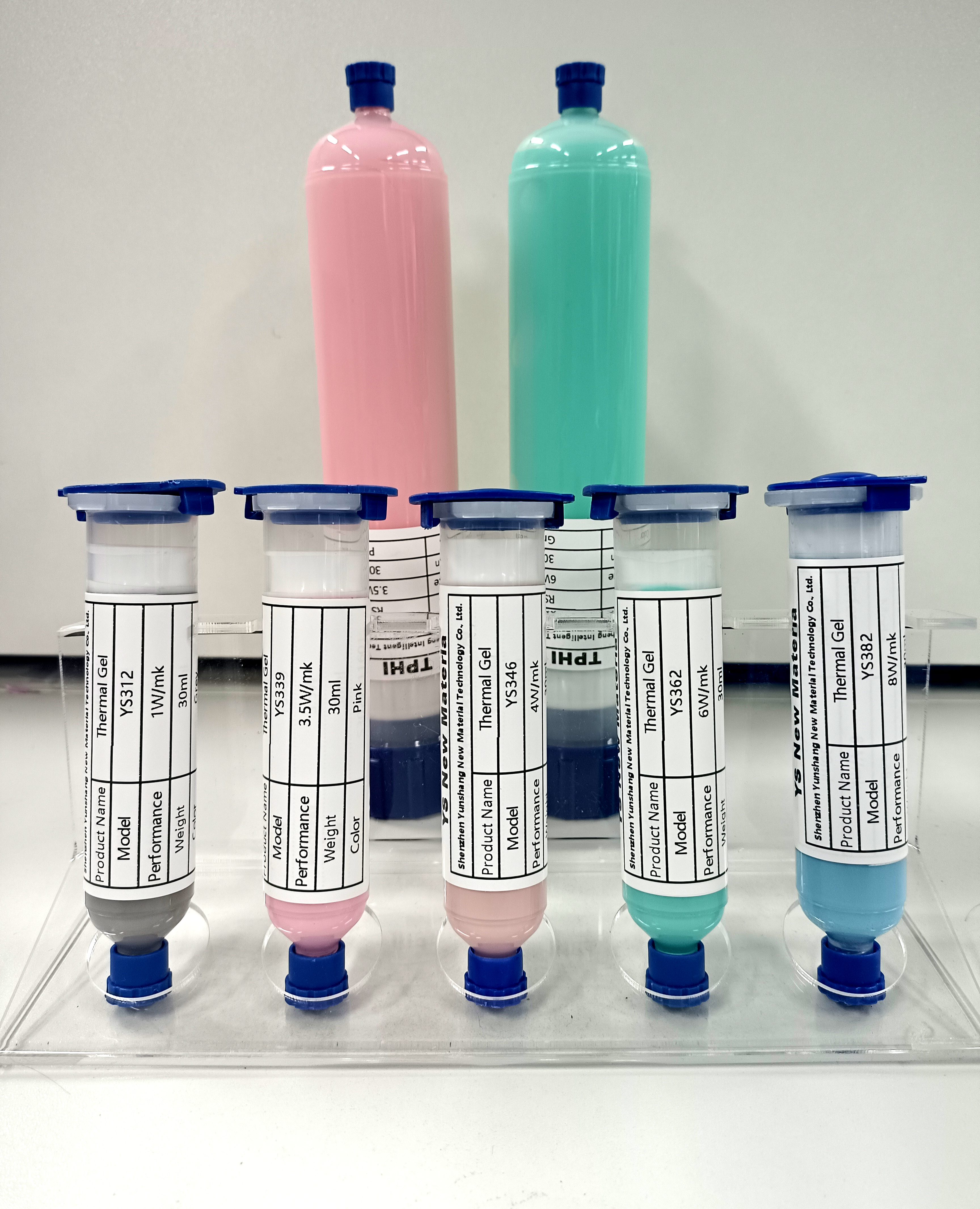

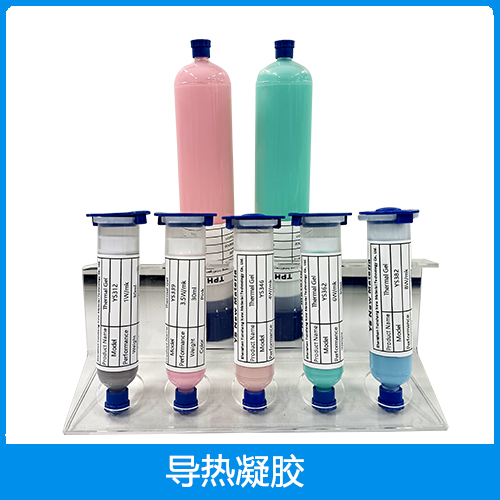

Product characteristics

(1) Thermal conductivity is a flexible silicone-based thermal conductive bracket filling material.

(2) It has high thermal conductivity, low interface thermal resistance and good thixotropy.

(3) Topics and physical properties of solids have very low heat absorption.

(4) Dispensing and coating operations can be done manually or with dispensing equipment.

(5) Meet the requirements of UL-94 flame retardant grade V0.

(6) Temperature resistance -40-150°

Legal Disclaimer

The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes. Pleasecontact usor e-mail：yslizi0211@gmail.com to determine product availability.

* Product remarks

Packaging specifications：30/50/100/300ml.

Instructions

(1) Manual dispensing (using a manual dispensing gun):

(2) Open the cap of the gel tube and insert the head of the gel tube into the

Position the tip of the dispensing gun and rotate the gel tube to

Stable on the tip of the gun.

(3) Close the cap of the pipette and open the screw connector of the gel tube.

head.

(4) Pull the trigger of the dispensing gun to use it.

Dispensing equipment (using automatic dispensing machine):

(1) Open the cap of the gel tube and connect the head of the gel tube to

The air outlet of the dispensing machine.

(2) Fix the gel tube to the corresponding clamp of the dispensing machine

Attach and open the screw connector of the gel tube, and root

If necessary, connect a needle of appropriate size or directly

use.

(3) Start the dispensing machine and start coating.

Storage conditions

(1) The product should be sealed, protected from light, and stored at a temperature of 8-26°C and a humidity <55%RH.

(2) The shelf life is 12 months from the production date.
